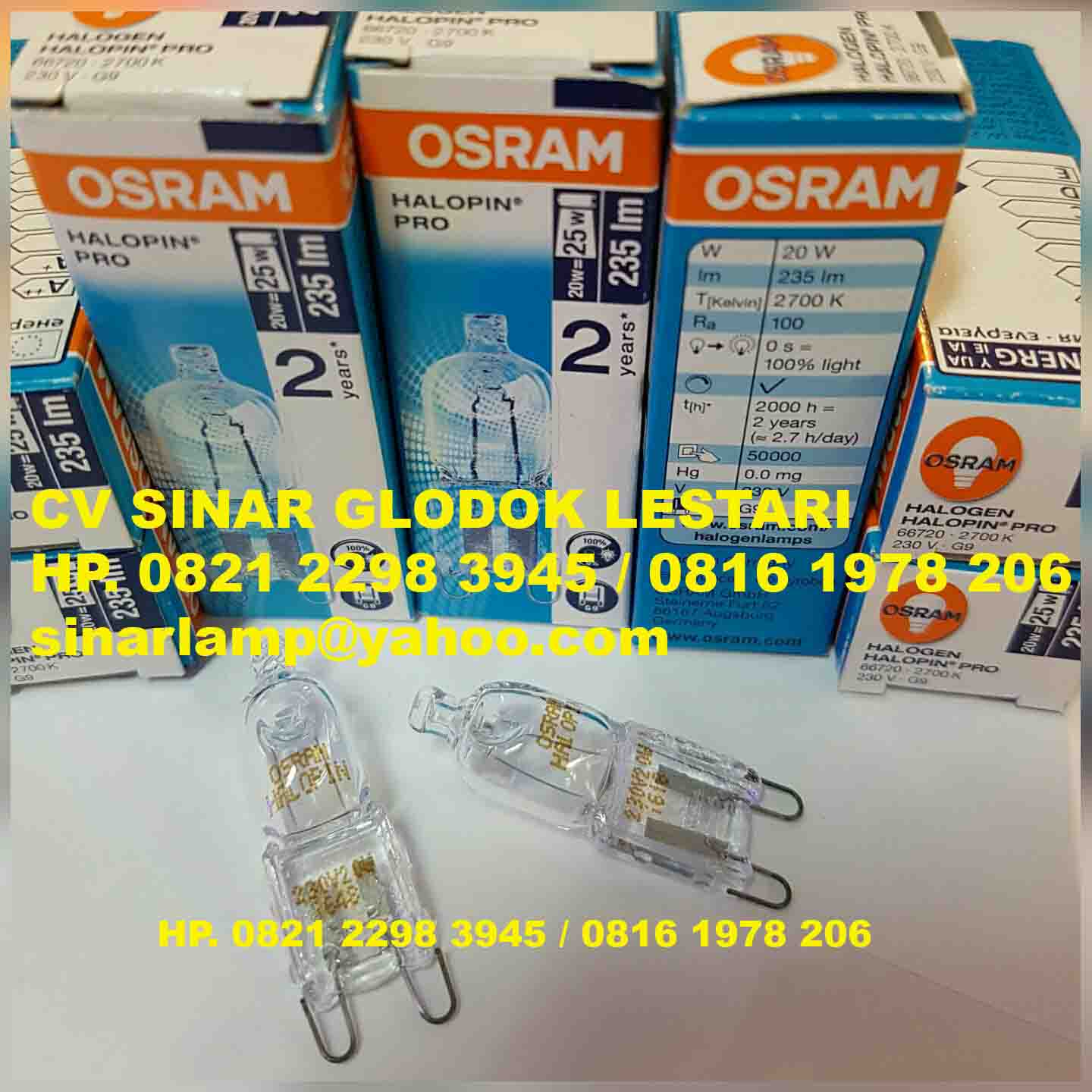

Lampu Halogen Osram G9 Halopin Capsule 20W 230V adalah lampu energy saving halogen capsule 230v 20w clear halogen capsule with G9 base manufacturer Osram
Lampu halogen capsule 230v 20 watt Osram 66720 Halopin kualitas terbaik, dengan kaki G9 base, penyebaran dan sorot cahaya sangat terang, daya tahan lama, kuat, dan aman
Product benefits
– Brilliant accent light
– Incredibly small dimensions for revolutionary new luminaire designs
– Robust filament design thanks to innovative, unique bulb pinch technology
– Approved for use in open luminaires (to IEC 60598-1)
– Simple handling thanks to G9 plug-in base/holder system
– No transformer required
– UV filter
– Complies with IEC 60432-3 thanks to integrated fuse function
– The lamp shuts down reliably
– Contains no mercury
Areas of application
– General illumination
– Workplace lighting
– Lighting for reading
– Dining table lighting
– Mirror lighting
– Accent lighting
– Mood lighting
Product features
– Average life : 2,000 h
– Dimmable
– Color rendering index Ra: 100
– Design: two lengths 43 mm (short), 51 mm (long)
– Base: G9
– Color temperature: 2,700 K
Technical data
Electrical data
– Nominal wattage : 20W
– Nominal voltage : 230V
– Rated wattage : 20W
– Power factor λ : 1.00
Photometrical data
– Nominal luminous flux : 235 lm
– Color temperature : 2700 K
– Light color (designation) : Warm White
– Rated luminous flux : 235 lm
– Color rendering index Ra : 100
Light technical data
– Starting time : 0.0 s
– Warm-up time (60 %) : 0.00 s
Dimensions & weight
– Diameter : 14.0 mm
– Length : 43.0 mm
– Light center length (LCL) : 22.0 mm
– Overall length : 42.5 mm
– Outer bulb : T12,5
– Maximum diameter : 14.0 mm
Lifespan
– Nominal lamp life time : 2000 h
– Rated lamp life time : 2000 h
– Number of switching cycles : 1000000
– Lumen main.fact.at end of nom.life time : 0.80
Additional product data
– Base (standard designation) : G9
– Mercury content : 0.0 mg
– Mercury-free : Yes
