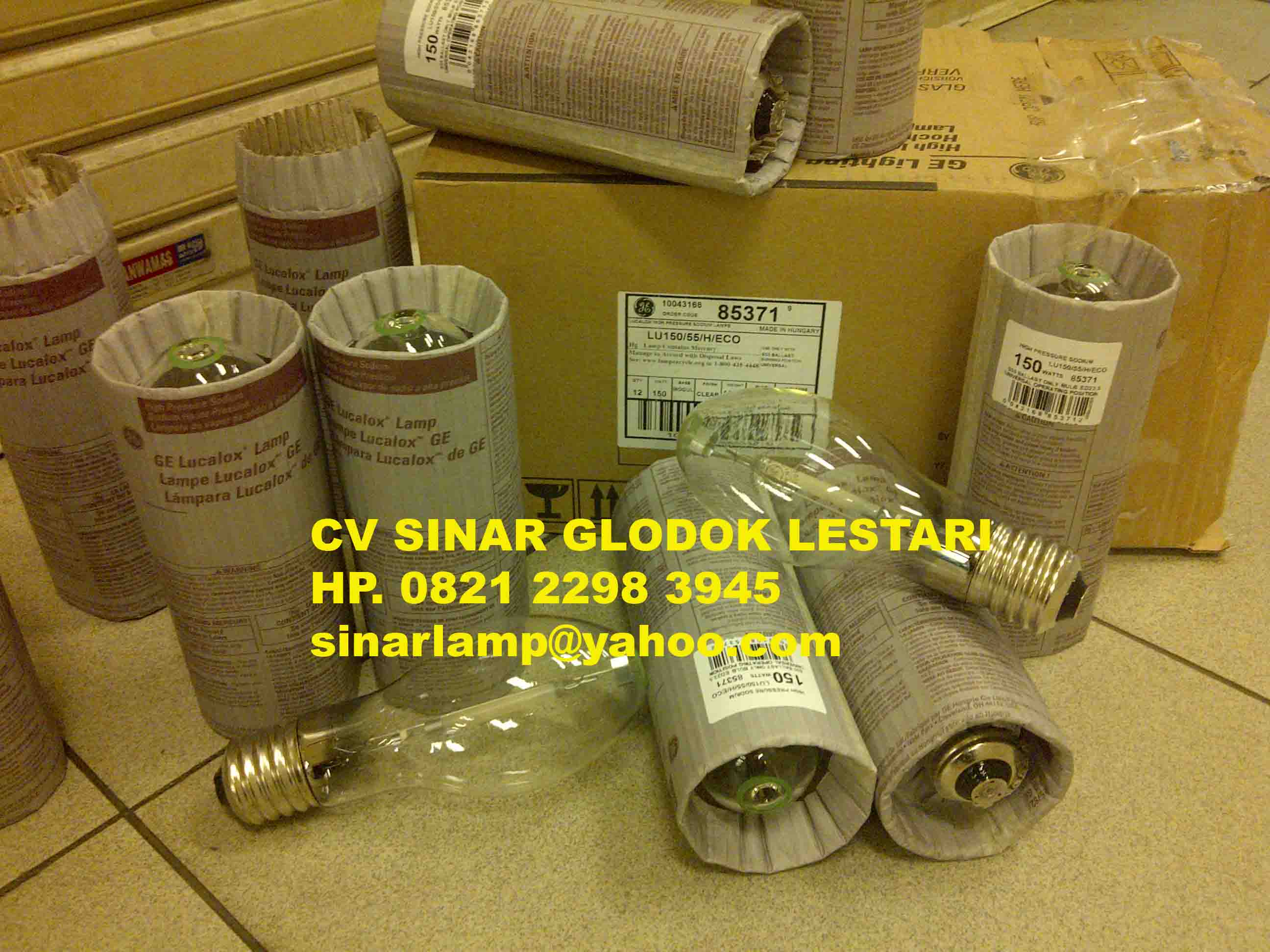

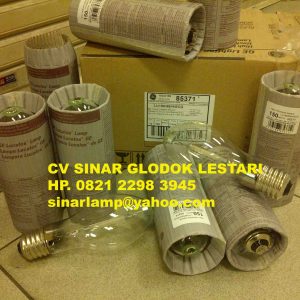

Lampu GE 85371 LU150/ 55/ H/ ECO Lucalox High Pressure Sodium adalah Lucalox lampu Sodium Tekanan Tinggi menawarkan efisiensi yang sangat tinggi dan biaya operasional yang rendah, Kuat dan tahan lama, memiliki kehidupan yang sangat panjang, membuat biaya pemeliharaan dan penggantian yang minimum, pemeliharaan lumen yang tinggi ( lebih dari 91 % ) dan cahaya warna keemasan yang hangat
GENERAL CHARACTERISTICS :
Lamp type High Intensity Discharge – High Pressure Sodium
Bulb ED23.5
Base Mogul Screw ( E39)
Bulb Finish Clear
Rated Life ( MIN) 24000 hrs
Rated Life 24000 hrs
Bulb Material Hard glass
Lamp Enclosure Type ( LET) Open or enclosed fixtures
Base Temperature ( MAX) 210 ° C( 410 ° F)
Bulb Temperature ( MAX) 400 ° C( 752 ° F)
LEED-EB MR Credit 43 picograms Hg per mean lumen hour
Additional Info TCLP compliant
PHOTOMETRIC CHARACTERISTICS :
Initial Lumens 16000
Mean Lumens 14400
Nominal Initial Lumens per Watt 107
Color Temperature 2000 K
Color Rendering Index ( CRI) 22
Effective Arc Length 2 in
ELECTRICAL CHARACTERISTICS :
Wattage 150
Burn Position Universal burning position
Open Circuit Voltage ( RMS lag ballast) ( MIN) 110.0 V
Warm Up Time to 90% 4 min
Hot Restart Time to 90% 1 min
DIMENSIONS :
Maximum Overall Length ( MOL) 7.7500 in ( 196.8 mm)
Nominal Length 7.7500 in ( 196.8 mm)
Bulb Diameter ( DIA) ( MAX) 2.9375 in ( 74.6 mm)
Bulb Diameter ( DIA) 2.9500 in ( 74.9 mm)
Light Center Length ( LCL) 5.0000 in ( 127.0 mm)
PRODUCT INFORMATION :
Product Code 85371
Description LU150/ 55/ H/ ECO
ANSI Code S55
Standard Package Case
Standard Package GTIN 10043168853719
Standard Package Quantity 12
Sales Unit Unit
No Of Items Per Sales Unit 1
No Of Items Per Standard Package 12
UPC 043168853712
COMPATIBLE GE BALLASTS :
Product Code Description # of Bulbs Power Factor Ballast Factor
86606 1233154U000I 1 0.8 1.0
87087 GES15048TLC3D-5 1 0.9 1.0
87094 GES150MLTLA3D-5 1 0.9 1.0
71439 GEC242-MVPS-BES
71441 GEC242-MVPS-3W
71440 GEC242-MVPS-SE
78536 GE S150TRILC3-5 1 90.0 1.0
67339 GES15048TLA3D-5/ 2 1 0.9 1.0
