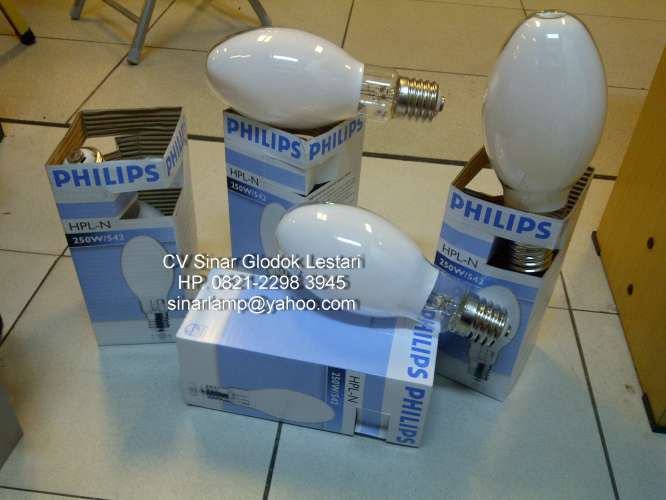

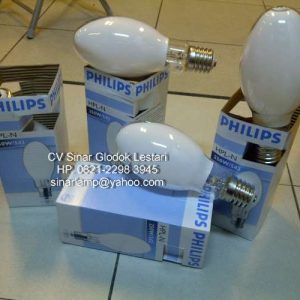

Lampu Mercury HPL-N PHILIPS adalah Lampu mercury jenis HPL-N 250 watt dengan fitting base E40 merk Philips, sinar putih terang, biasa di pakai untuk kap lampu jalan atau kap HDK industri, atau lampu taman, dipadu dengan komponen ballast merk Philips akan lebih kuat dan tahan lama, dengan umur lampu mencapai 10,000 jam
Sangat cocok untuk penerangan dalam daerah industri, pabrik, aula gedung, sport hall, lampu jalan, lampu taman, dll
Specifications
General Information
– Cap-Base : E27 dan E40
– Operating Position : UNIVERSAL [ Any or Universal (U)]
– Life To 5% Failures (Nom) : 6000 h
– Life To 20% Failures (Nom) : 12000 h
– Life To 50% Failures (Nom) : 16000 h
– LSF 2000 h Rated : 99 %
– LSF 4000 h Rated : 97 %
– LSF 6000 h Rated : 92 %
– LSF 6000 h Rated : 83 %
– LSF 6000 h Rated : 65 %
– LSF 6000 h Rated : 45 %
– LSF 6000 h Rated : 28 %
Light Technical
– Color Code : 542 [ CCT of 4200K]
– Luminous Flux (Rated) (Nom) : 12700 lm
– Color Designation : Cool White (CW)
– Lumen Maintenance 2000 h (Min) : 78 %
– Lumen Maintenance 2000 h (Nom) : 90 %
– Lumen Maintenance 5000 h (Min) : 75 %
– Lumen Maintenance 5000 h (Nom) : 85 %
– Chromaticity Coordinate X (Nom) : 381
– Chromaticity Coordinate Y (Nom) : 383
– Correlated Color Temperature (Nom) : 4100 K
– Luminous Efficacy (rated) (Nom) : 51 lm/W
– Color Rendering Index (Nom) : 45
– LLMF 2000 h Rated : 88 %
– LLMF 4000 h Rated : 86 %
– LLMF 6000 h Rated : 84 %
– LLMF 8000 h Rated : 82 %
– LLMF 12000 h Rated : 78 %
– LLMF 16000 h Rated : 75 %
– LLMF 20000 h Rated : 72 %
Operating and Electrical
– Power (Rated) (Min) : 250.0 W
– Power (Rated) (Nom) : 250.0 W
– Lamp Current (EM) (Nom) : 2.1 A
– Ignition Supply Voltage (Max) : 170 V
Controls and Dimming
– Dimmable : No
Mechanical and Housing
– Bulb Finish : Coated glass
– Bulb Material : Hard Glass
Approval and Application
– Energy Efficiency Label (EEL) : B
– Mercury (Hg) Content (Nom) : 38 mg
– Energy Consumption kWh/1000 h : 275 kWh
Luminaire Design Requirements
– Bulb Temperature (Max) : 350 °C
– Cap-Base Temperature (Max) : 250 °C
Product Data
– Full product code : 871150018060515
– Order product name : HPL-N 250W/542 E40 HG 1SL/12
– EAN/UPC – Product : 8711500180605
– Order code : 928053007422
– Numerator – Quantity Per Pack : 1
– Numerator – Packs per outer box : 12
– Material Nr. (12NC) : 928053007422
– Net Weight (Piece) : 0.180 kg
– ILCOS Code : QE-250/41/3-H-E40
