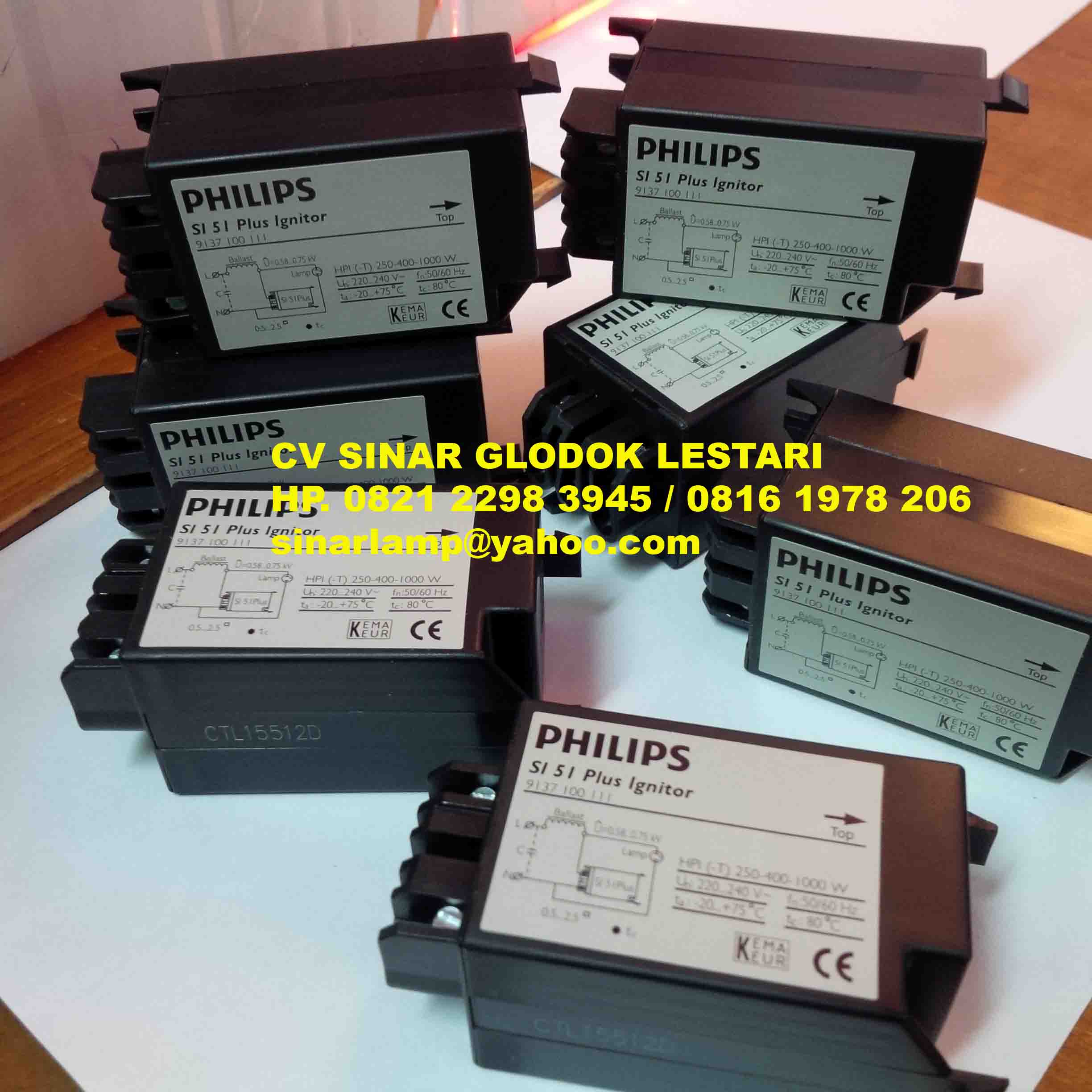

Ignitor Lampu SI 51 PHILIPS adalah komponen untuk lampu, Ignitor SI 51 merk Philips, kualitas terbaik dipakai untuk perlengkapan jenis lampu metalhalide HPI-T 250W dan HPI-T 400W
Ignitor lampu jalan atau ignitor lampu sorot, kualitas terbaik, kuat, daya tahan lama dan harga terjangkau, banyak di pakai sebagai komponen untuk perlengkapan perakitan lampu metalhalide
Specifications :
General Information
– Application Code : 51
– Lamp Type : HPI
– Number Of Lamps : 1 piece/unit
Operating and Electrical
– Input Voltage : 220 to 240 V
– Input Frequency : 50 to 60 Hz
– Igniton Type : Parallel
– Number Of Ignition Pulses : 1
– Ignition Voltage (Max) : 0.75 kV
– Response Voltage : 190 V
– Mains Voltage Performance (AC) : -8%-+6%
– Mains Voltage Safety (AC) : -10%-+10%
– Power Losses (Nom) : 1.0 W
Wiring
– Cable Capacity Wires Device To Lamp (Nom) : 150 nF
– Wire Striplength : 6.0 mm
– Ballast Contact Wire Cross Section : 0.70-2.50 mm²
– Connector Type : Screw
System characteristics
– Rated Ballast-Lamp Power : 250/400 W
Temperature
– T-Ambient (Max) : 75 °C
– T-Ambient (Min) : -20 °C
– T-Storage (Max) : 80 °C
– T-Storage (Min) : -25 °C
– T-Case Maximum (Max) : 80 °C
Mechanical and Housing
– Housing : SNI-85
Approval and Application
– Approval Marks : CE marking & ENEC certificate
Product Data
– Full product code : 871150091553530
– Order product name : SI 51 220-240V 50/60Hz
– EAN/UPC – Product : 8711500915535
– Order code : 913619519966
– Numerator – Quantity Per Pack : 1
– Numerator – Packs per outer box : 48
– Material Nr. (12NC) : 913619519966
– Net Weight (Piece) : 0.047 kg
